Specification:
| Product Type | Splice Trays |
| Technology | Fusion Splice |
| Application | Carrier Networks, CATV Environments, Central Office, Enterprise Networks |
| Part Number | M67-041 |
Standards:
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Design:
| Splice Tray Type | Standard with organizers for RTV splice protectors |
| Splice Tray Category | 2S |
| Splice Protectors Type | RTV (Room Temperature Vulcanizing) fusion sealant |
| Splice Tray Capacity Single Fiber | 12 N/A |
| Housing Type | Splice Trays |
Description:

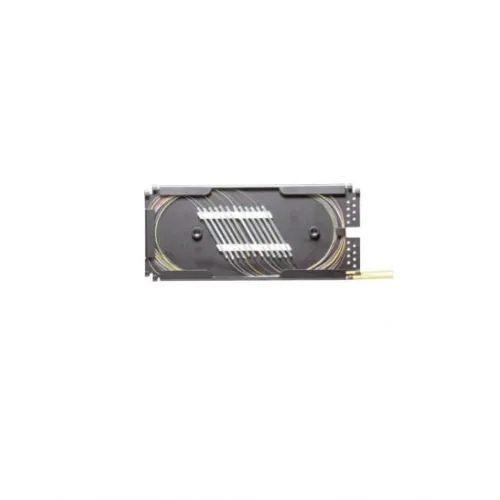

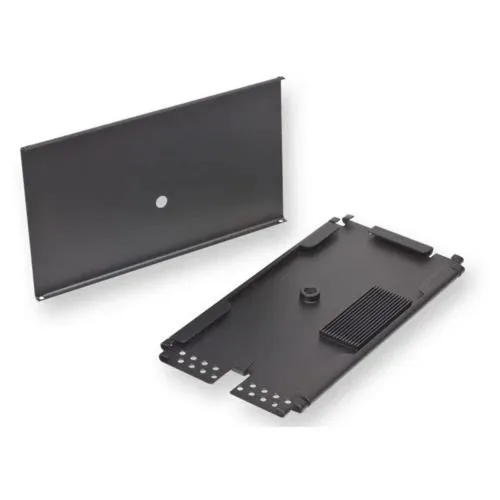

Corning splice trays use proven designs and fiber organization technology to provide optimum physical protection for fusion and mechanical splicing methods. The trays are engineered for use with indoor or outdoor splice hardware with both loose tube and tight-buffered optical cable designs. The metal-tray series consists of a rugged aluminum base and cover with crimpable metal tabs for buffer tube strain relief. Additional strain-relief points are available for securing buffer tubes or pigtails to the
trays using cable ties. The black powder coating allows easy fiber identification and additional protection.
Features and Benefits:
• Metal trays powder coated
‣ Ruggedness and durability
• Used as a component of Corning's fiber distribution frame
‣ Flipcard for easier record keeping

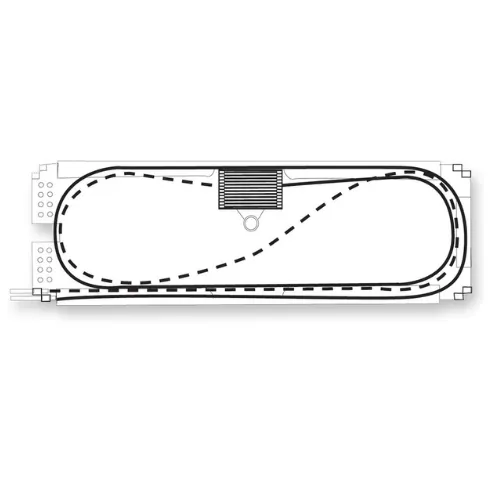

• Fiber loop retention
‣ Controls the bend radius
• Positive holding action
‣ Maximum splice protection
